Ultra Drain Plus

High performance modular linear drainage with an anodised aluminium top. Engineered for strength, built to last.

Profiles
5
Flow
160 to 875 L/min
Vehicle rating
1000 kg per tyre
Enquire about Ultra DrainDownload the brochure

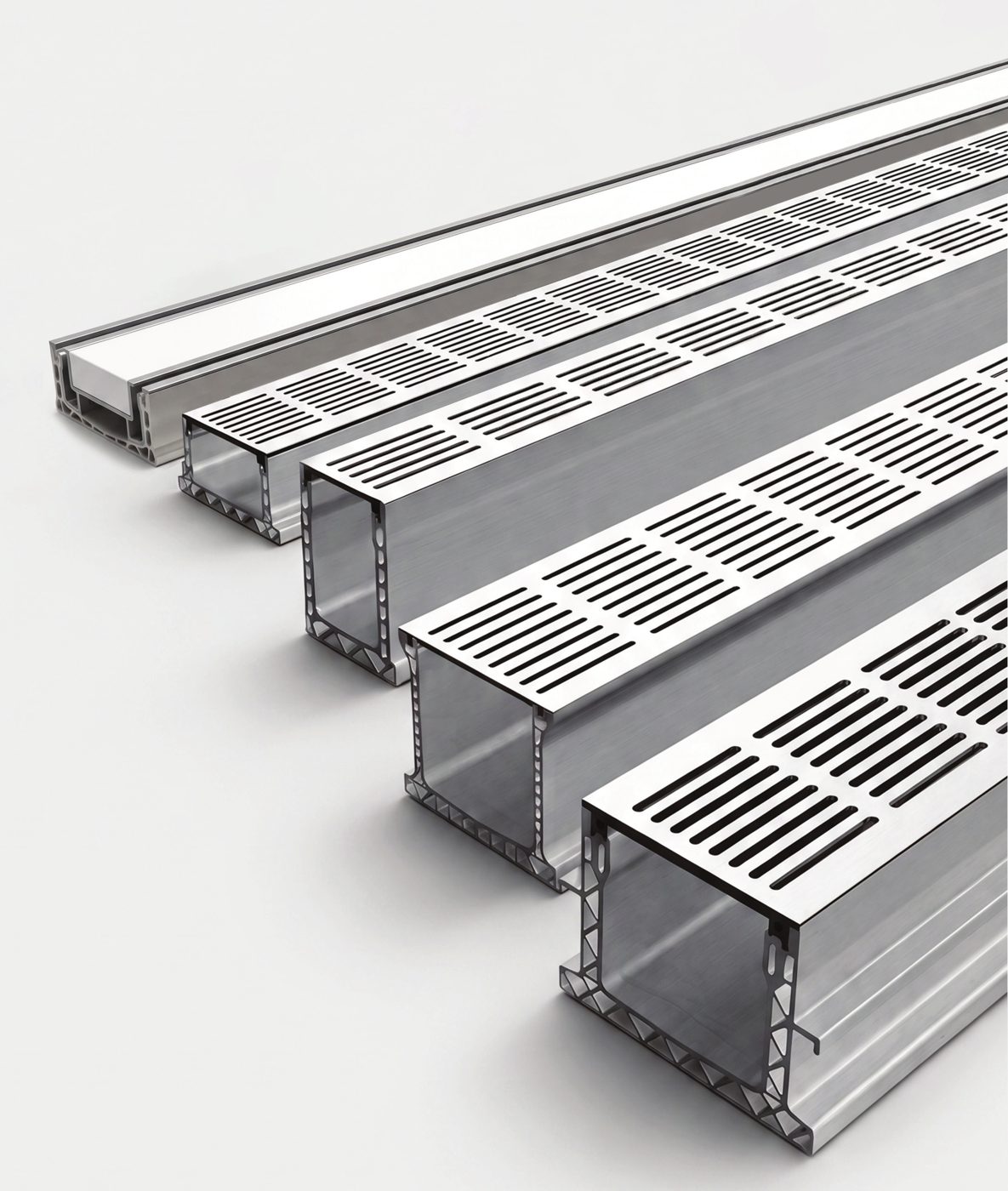

Ultra Drain Plus range: Tile Insert, UDP 45, 75, 100 and 130 channels with alloy tops

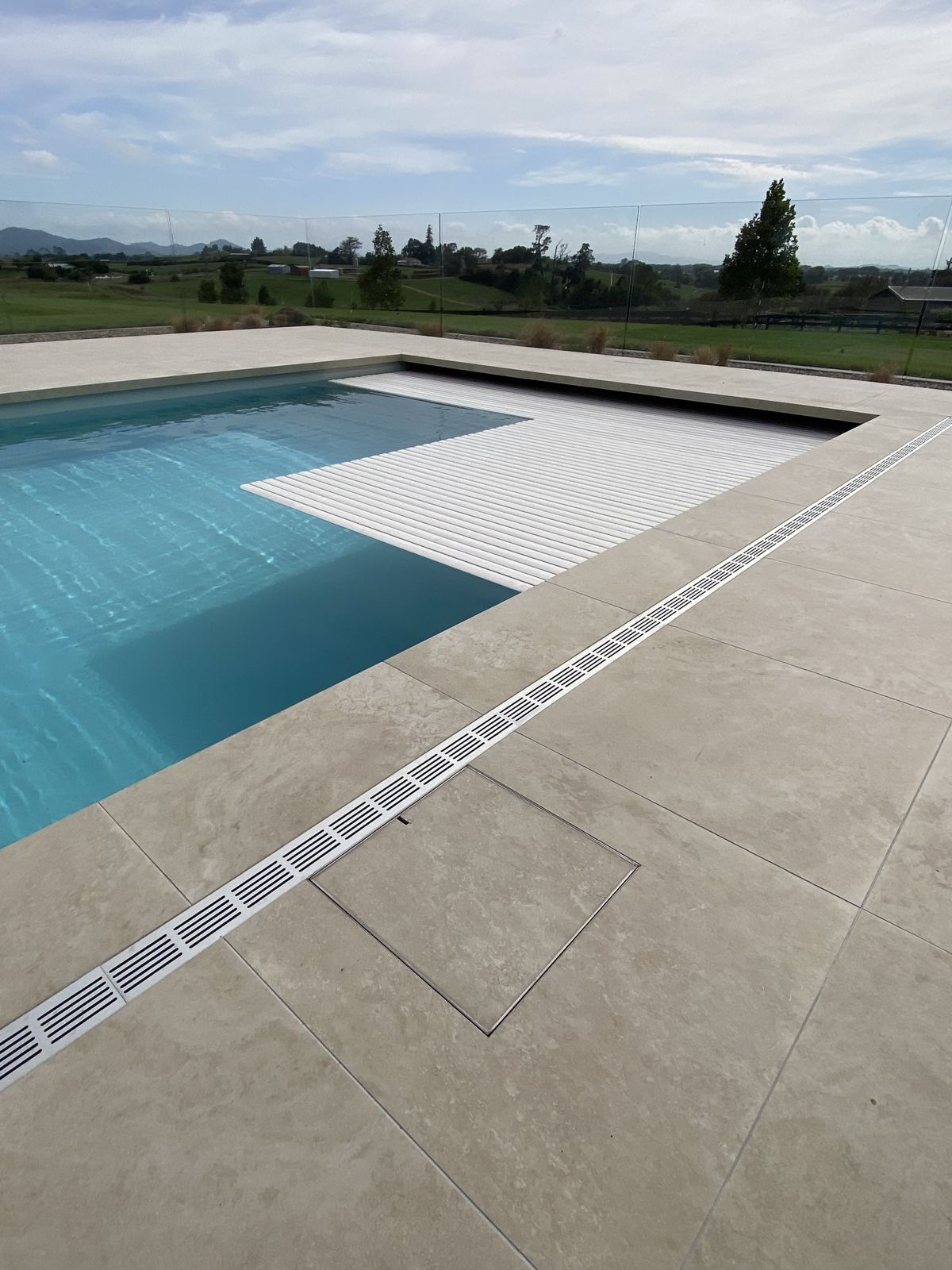

Ultra Drain Plus with slotted alloy top running beside a pool in large format pavers

The ultimate in channel drain systems

Ultra Drain Plus is a modular linear channel with an anodised aluminium top over a UV stabilised base. It is designed and owned in New Zealand, and made to fit standard DWV pipe sizes, so it plugs into the drainage you already have.

Use it along pool surrounds, at door and slider thresholds, across driveways and garage entries, and at the foot of steps and walls, anywhere surface water needs a clean line to follow.

  • Durable. Alloy tops are anodised to marine grade specification and will not rust.
  • Efficient. High flow capacity, with a fall built into the base to cut pooling.
  • Modular. Interlocking lengths and fittings for seamless, glued joins.
  • Local. New Zealand owned and designed.
  • Recyclable. Aluminium top and virgin base material are both 100% recyclable.

Five profiles, one system

Pick by the area and rainfall you need to move, then by how the top should read against your finish.

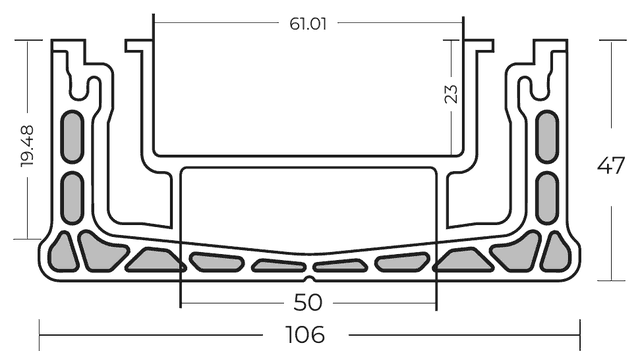

Tile Insert cross section with dimensions in millimetres
Tile Insert

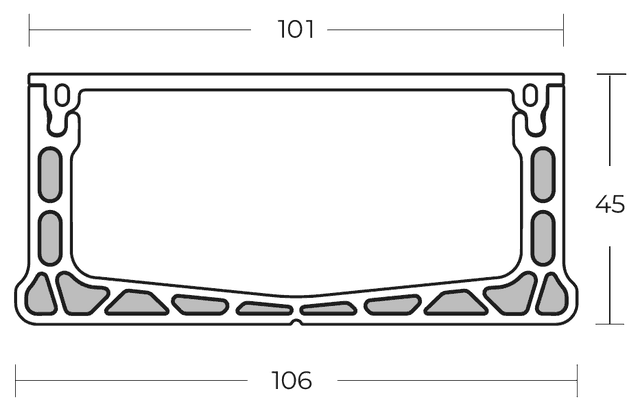

UDP 45 cross section with dimensions in millimetres
UDP 45

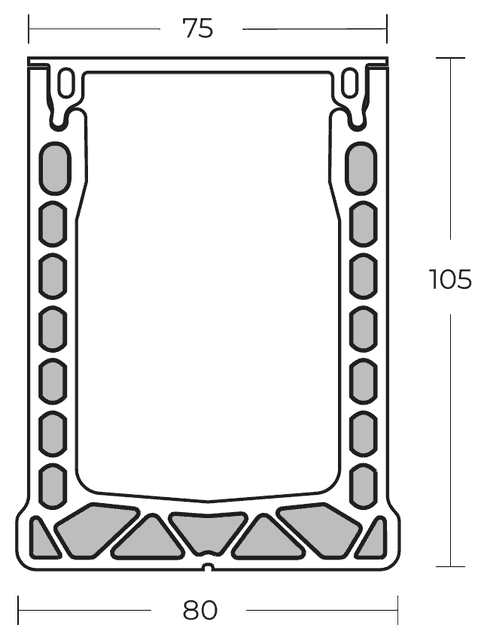

UDP 75 cross section with dimensions in millimetres
UDP 75

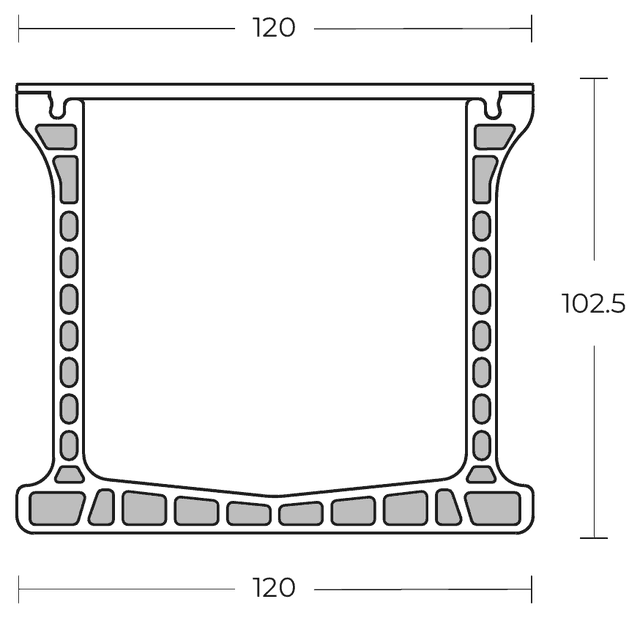

UDP 100 cross section with dimensions in millimetres
UDP 100

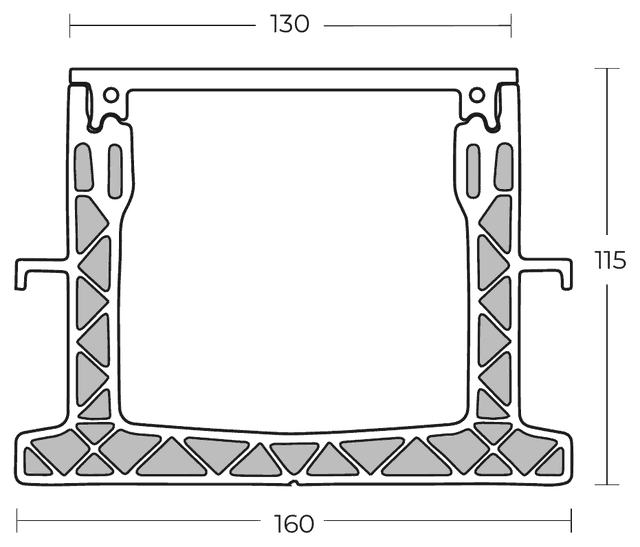

UDP 130 cross section with dimensions in millimetres
UDP 130

Cross sections, dimensions in millimetres. Drawings are not to a common scale.

Specification Tile Insert UDP 45 UDP 75 UDP 100 UDP 130
Water flow160 L/min330 L/min545 L/min825 L/min875 L/min
Internal width101 mm101 mm75 mm120 mm130 mm
Overall width106 mm106 mm80 mm120 mm160 mm
Height45 mm45 mm105 mm102.5 mm115 mm
TopAlloy tray, takes 20 mm tile or stoneSlotted or honeycomb alloy grate
DischargeSpigot to 100 mm pipeSpigot or bottom outletEnd, side or bottom outlet
Vehicle rating1000 kg per inflated tyre, up to 25 km/h, when encased in concrete
Packs2 m and 4 m2 m and 4 m2 m and 4 m2 m and 4 m2 m

Tile Insert

The grate disappears. A 22 mm alloy tray holds 20 mm tile, paver or stone so the drain reads as a thin pair of lines. For 10 mm tile, pack underneath with 10 mm water resistant villa board.

UDP 45

The shallow option for slabs with little depth to spare: thresholds, balconies, courtyards and paths.

UDP 75 and 100

The everyday workhorses for pool surrounds, patios and driveway runs, with side and end outlets for tighter layouts.

UDP 130

The highest capacity, with a wall locking arm that keeps the channel rigid on commercial jobs.

Installed

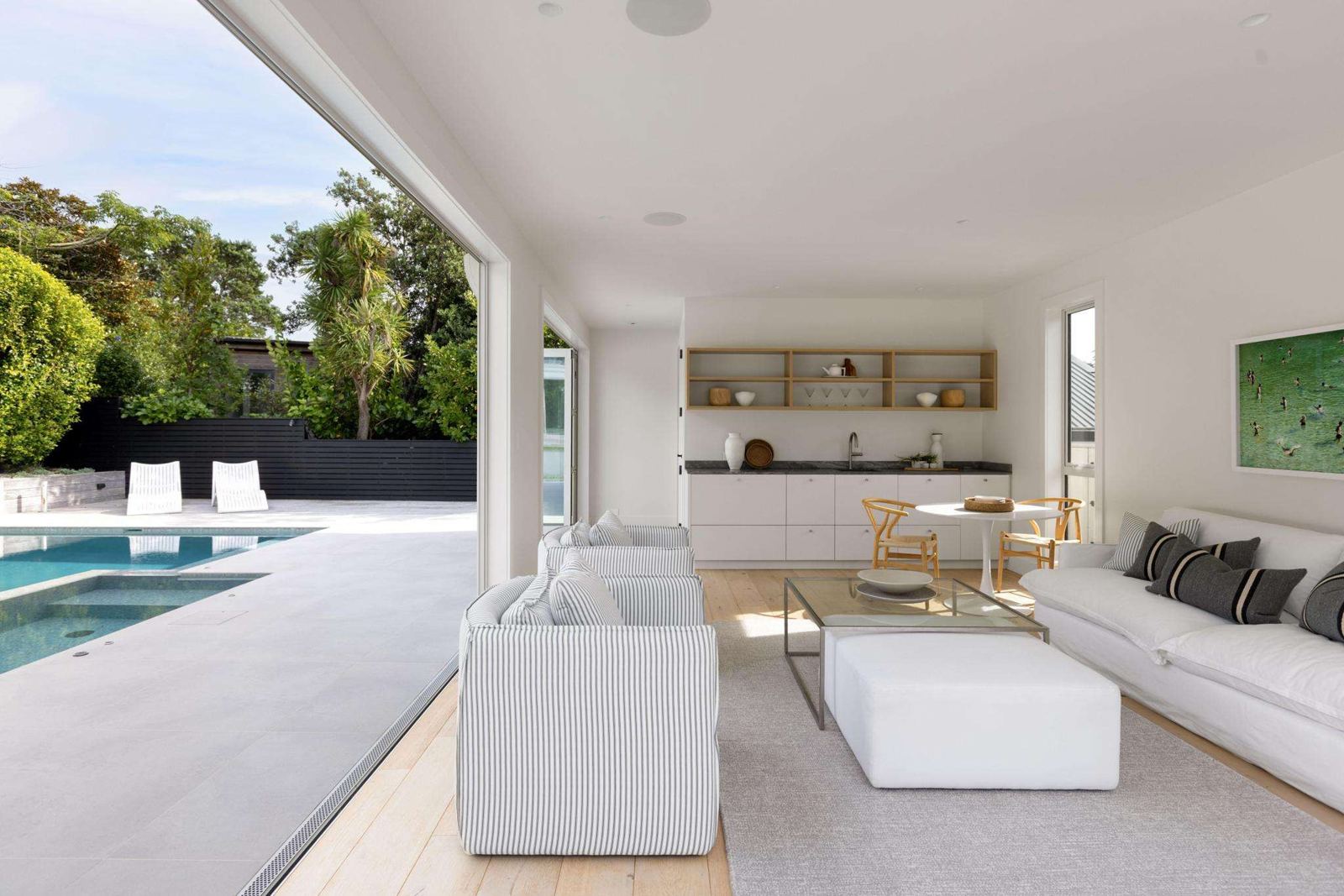

Pool house slider threshold
Pool house slider threshold

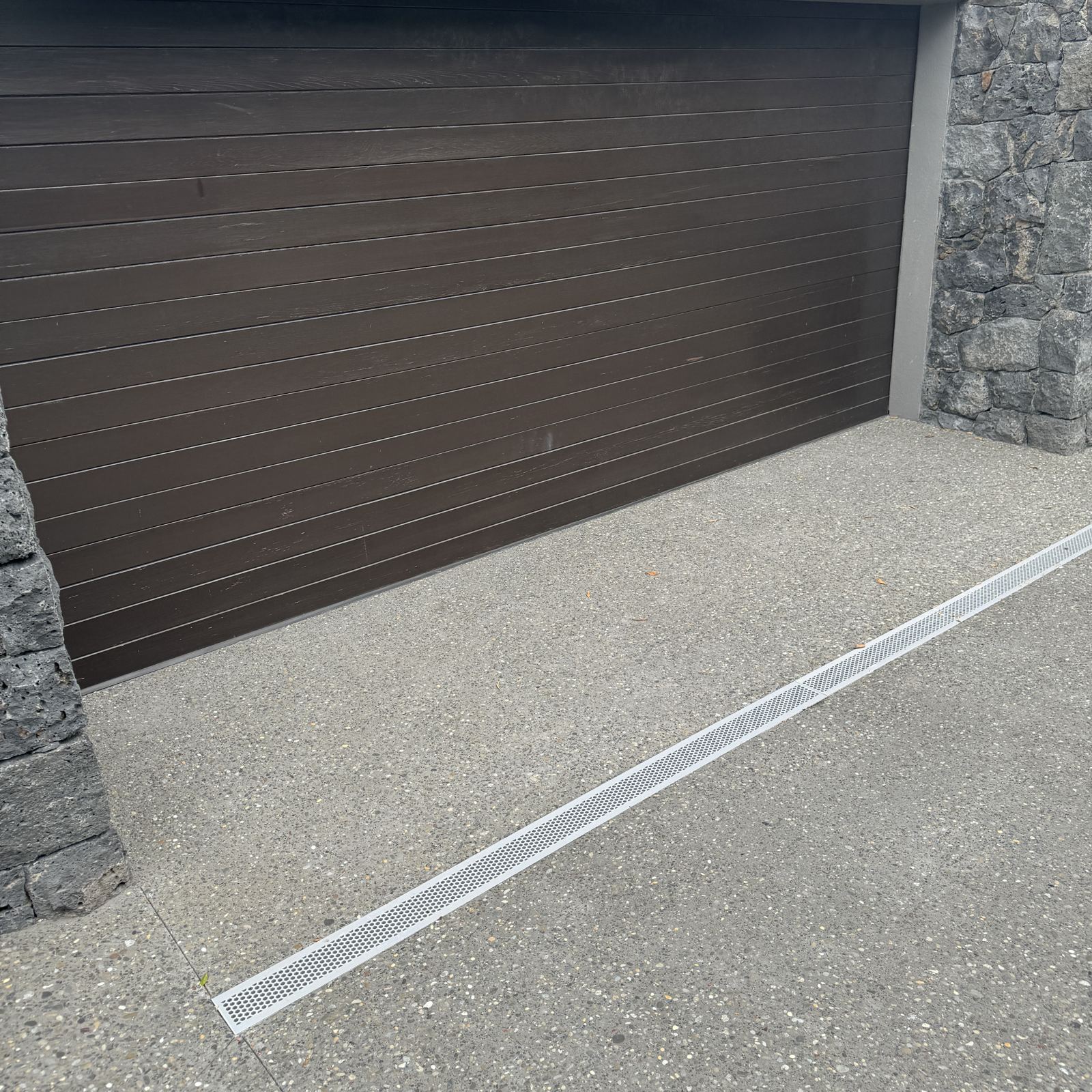

Garage entry, honeycomb top
Garage entry, honeycomb top

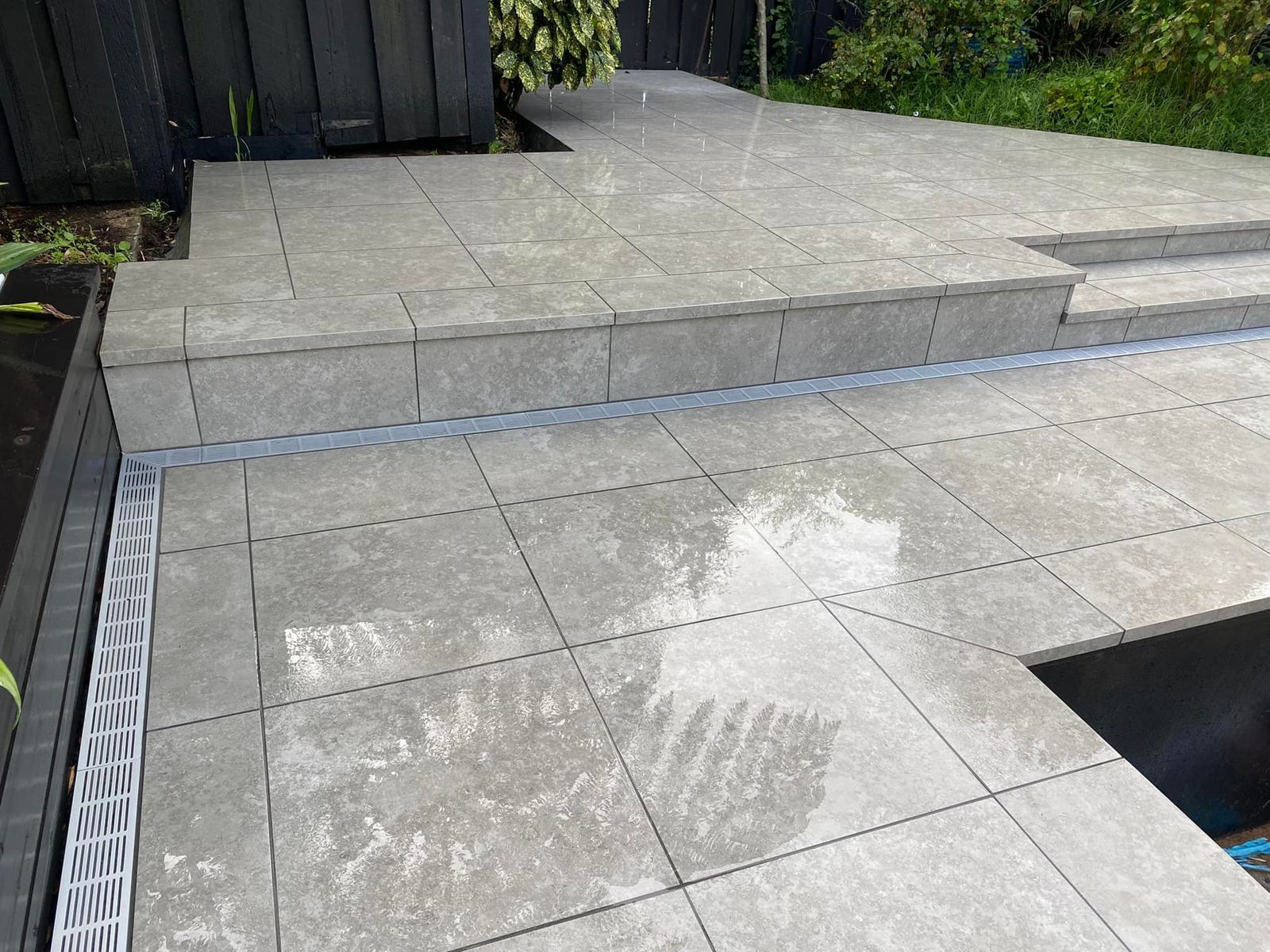

Tiled terrace and step, with corner
Tiled terrace and step, with corner

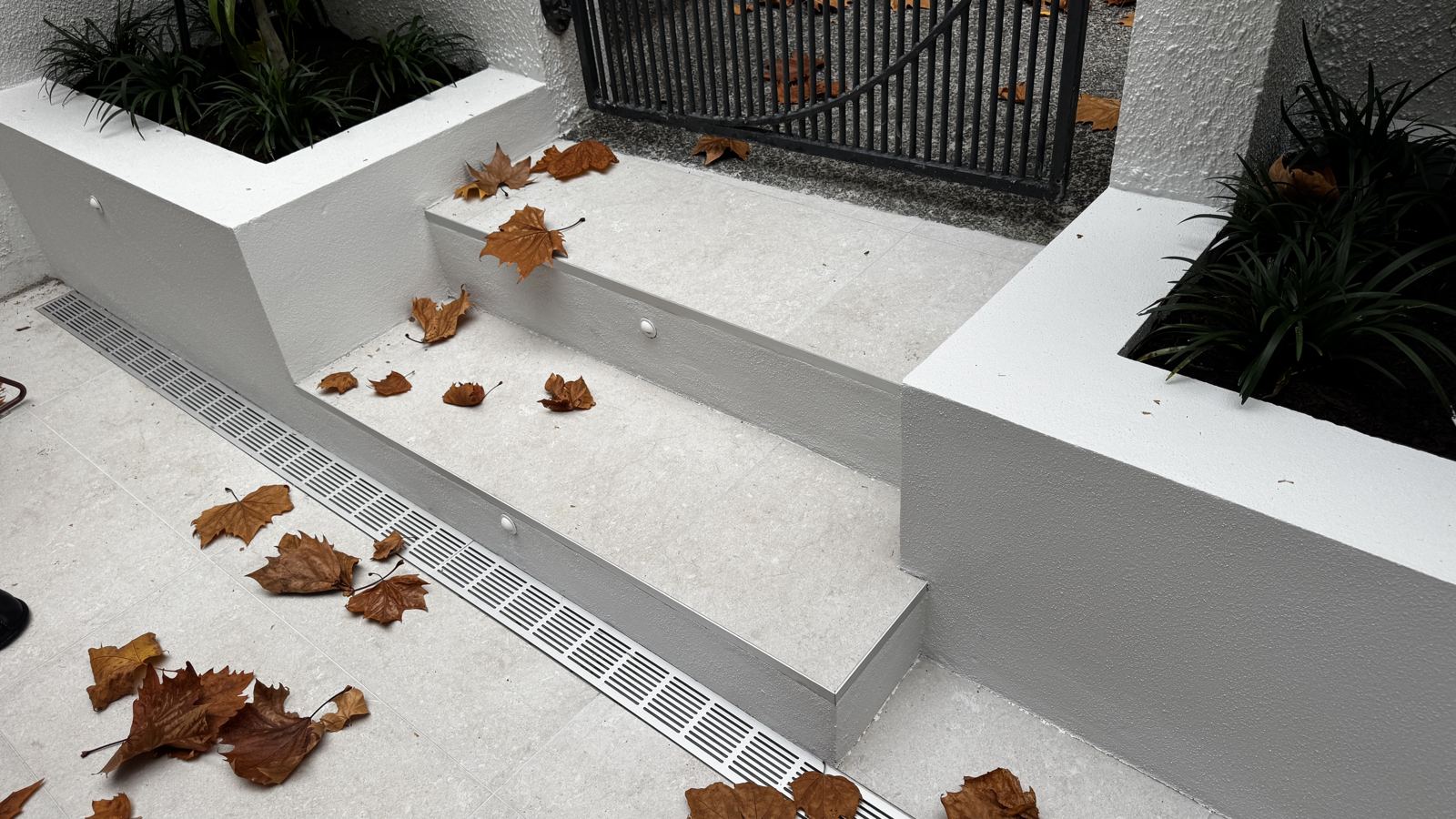

Courtyard steps
Courtyard steps

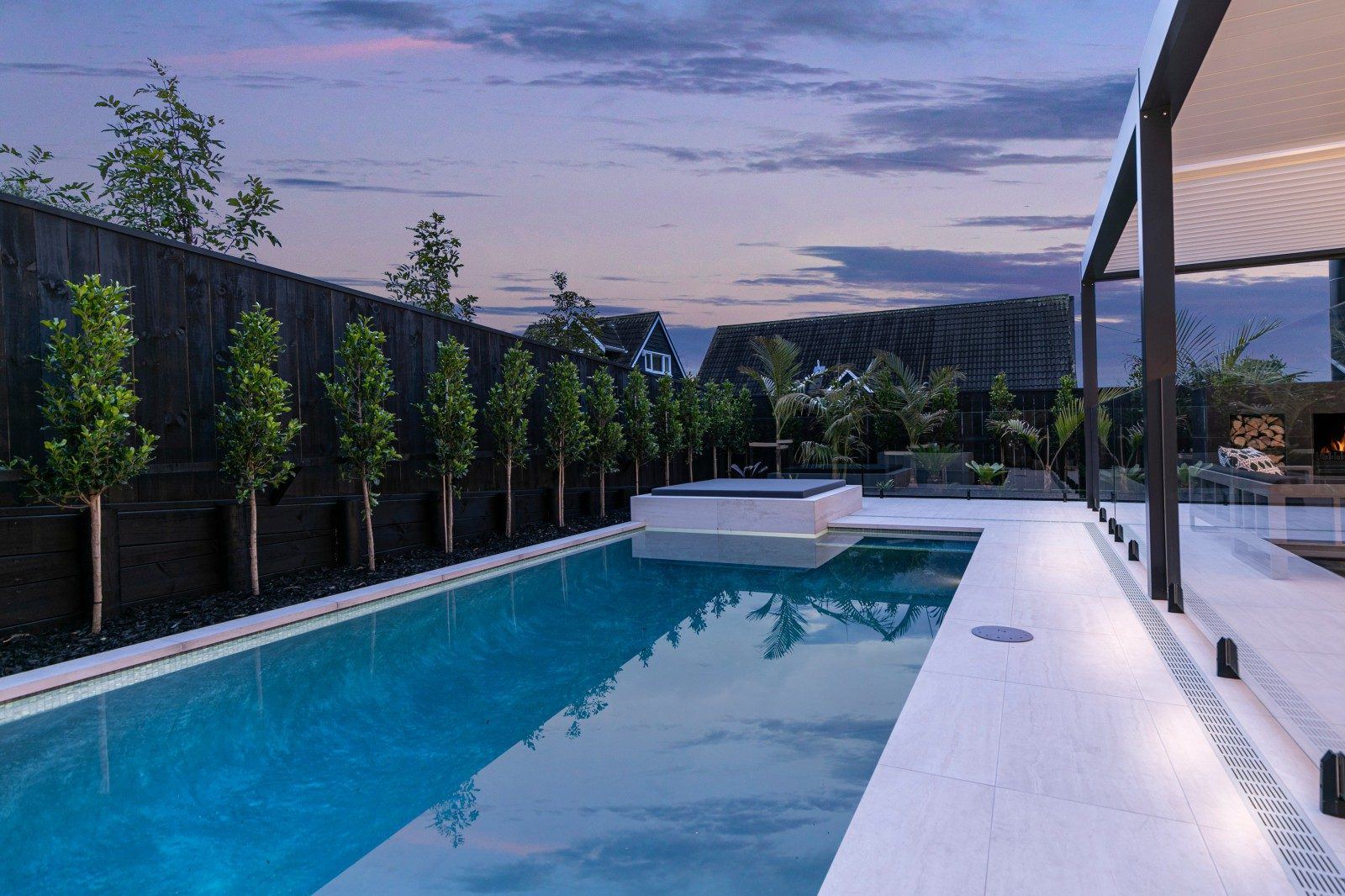

Pool deck beside glass fencing
Pool deck beside glass fencing

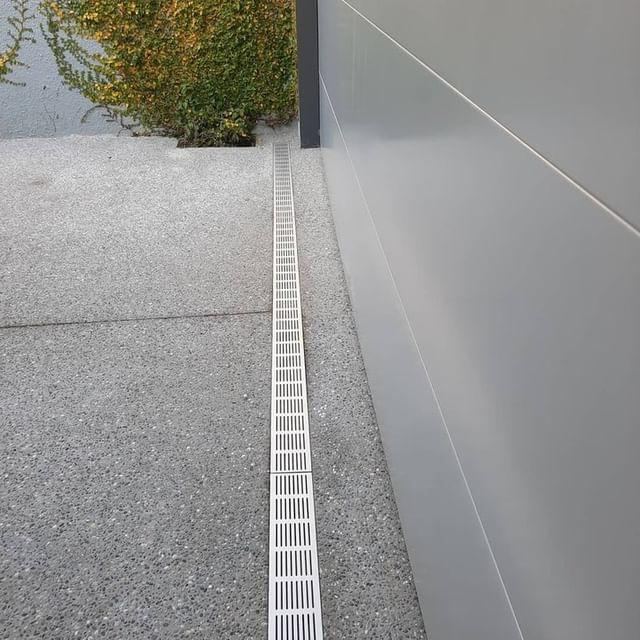

Exposed aggregate along cladding
Exposed aggregate along cladding

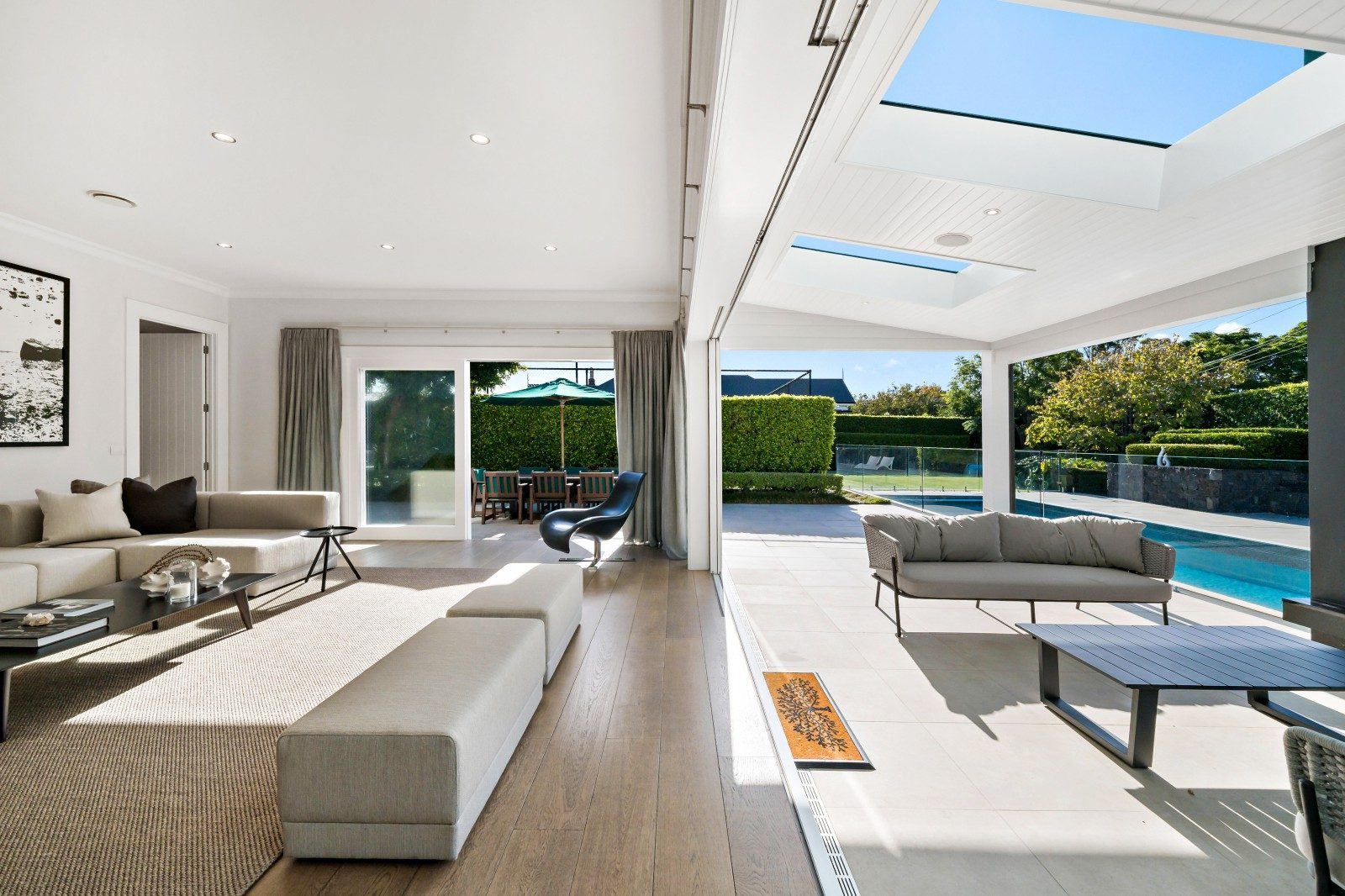

Indoor to outdoor slider line
Indoor to outdoor slider line

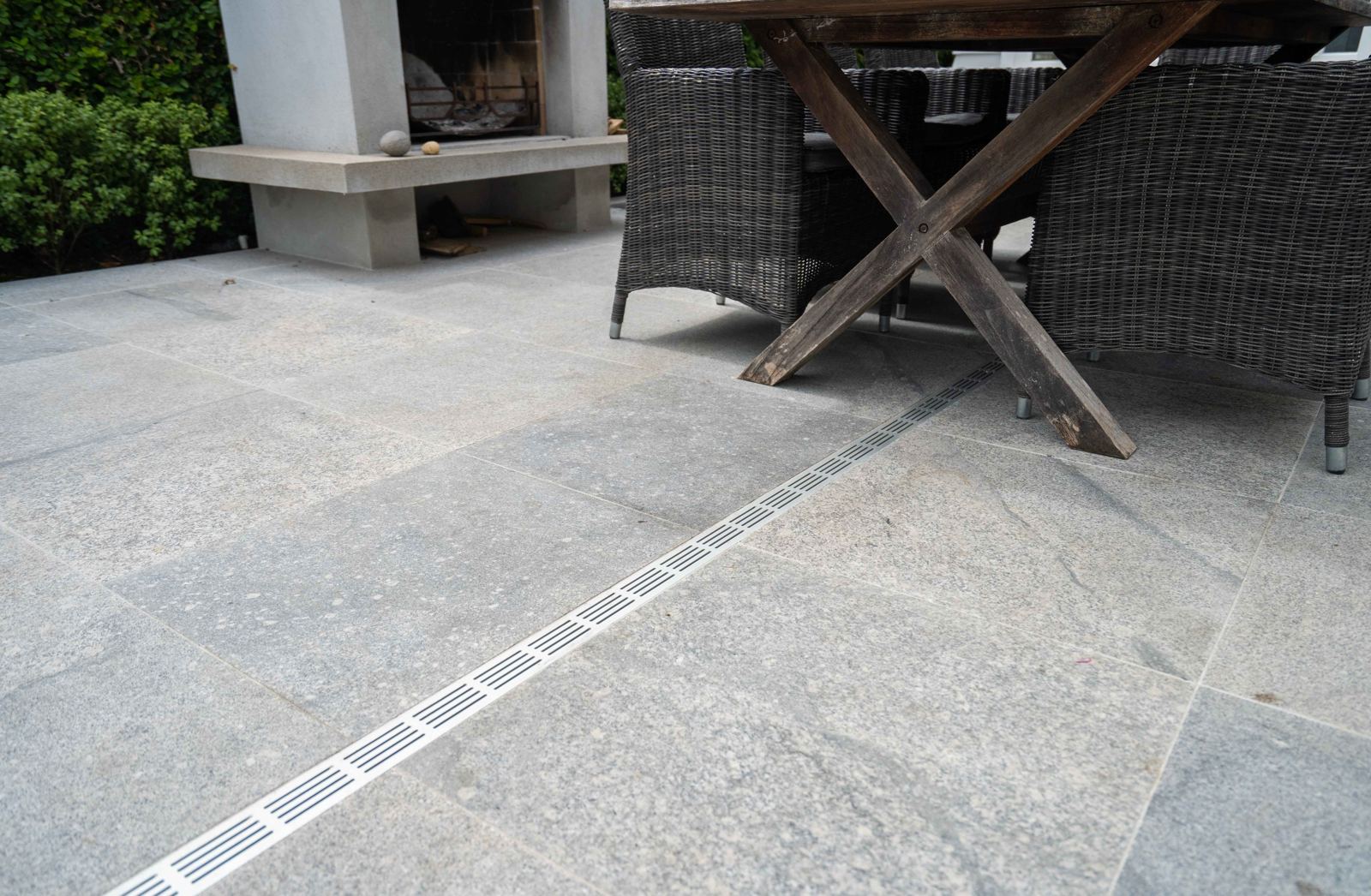

Stone patio
Stone patio

Built in

  • The alloy top is a compression fit rather than a clip, so it sits firm and stays level.
  • Top and base can be locked together to stop tampering in public spaces like parks and hospitals.
  • The top wraps over the base edge, so no plastic is left exposed to UV.
  • Internal interlocks line lengths up cleanly, and an outside glue joint adds strength.
  • The honeycomb top is extruded from 6063A alloy for extra strength, and lets leaves lift out more easily than slotted tops.
  • All fittings are sized to DWV pipe.

Installation

  1. Store the alloy top away from site until concreting and tiling are finished. Leave the construction cover in the base.
  2. Lay out the lengths, corners and outlets you need.
  3. Join every part with PVC solvent cement, fixing corners and outlets to suit your drainage design.
  4. Set the finished height and fall, then haunch the channel in concrete or sand and cement.
  5. Pour concrete around the channel to finished height, keeping it straight and clean.
  6. Tile or finish the surface. Leave a 4 mm flexible joint of silicone or polyurethane between the finish and the drain.
  7. Remove the construction cover and press the alloy top in, working from one end.

Clean alloy with pH neutral products only. Not for heavy vehicle traffic over 5 tonnes. Store out of direct sunlight.

Questions

Does Ultra Drain rust?

No. The alloy grating is anodised to marine grade specification.

Which size should I use?

It depends on the surface area being drained and the rainfall on site. Send us the layout and we can help you size it.

Can I drive over it?

Yes, for vehicles up to 1000 kg per inflated tyre at up to 25 km/h, provided the channel is encased in concrete as per the installation guide. It is not intended for heavy vehicle traffic over 5 tonnes.

What do I join the parts with?

PVC solvent cement, available from any plumbing supplier or DIY store.

Is it chemical resistant?

The base resists all standard household chemicals. Clean the alloy top with pH neutral products only, as acid or strongly alkaline cleaners can damage it.

How hot can the water be?

The base is rated for water up to 55°C.

Does the alloy top get hot in the sun?

Aluminium reflects both light and heat well, so it stays comfortable underfoot.

Can I get custom lengths?

Yes, on indent, with a minimum run of 3000 lineal metres. Custom branded packaging is also available with a minimum of 2000 boxes per size.

Planning a run?

Send us your layout, finish and rough lengths and we will help you pick the right profile, outlets and fittings.
