Downunder roller systems
Hidden pool cover roller systems
Downunder hidden rollers keep the pool cover and roller out of sight, installed into decking or tiled and paved areas. Pull the cover out to close, wind it back to open, then close the lid. Our most popular manual cover option.
- Free samples NZ-wide
- 45 years supplying NZ
- Showroom in Wairau Valley
01 — Features
Why a hidden roller
Hinged anodised aluminium lid
The roller stays hidden from plain sight.
No bulky rollers
A clean pool surround with nothing on show.
Saves energy and water
Use with a thermal blanket to cut heat loss and evaporation.
Decking, concrete or tiles
Fits new or existing surrounds.
Easy to install and affordable
Quick installation methods and simple operation.
Thermal or bubble covers
Suits both cover types.
02 — Specifications
Roller systems specifications
- Lid
- Hinged anodised aluminium
- Decking opening
- 270mm wide, flush
- Standard lengths
- 3.4, 3.9, 4.4 and 4.9m
- Special lengths
- 1m up to 5.5m
- Covers
- Thermal or bubble
Brochures & technical data
04 — Installation
Installation options

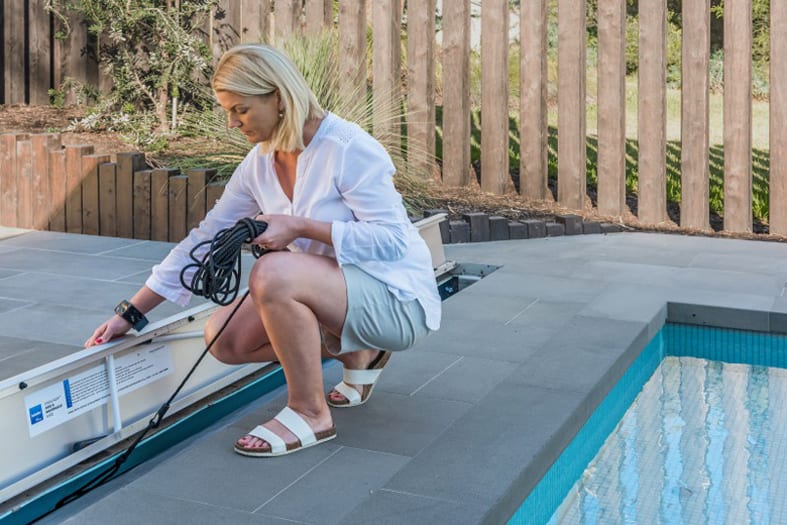

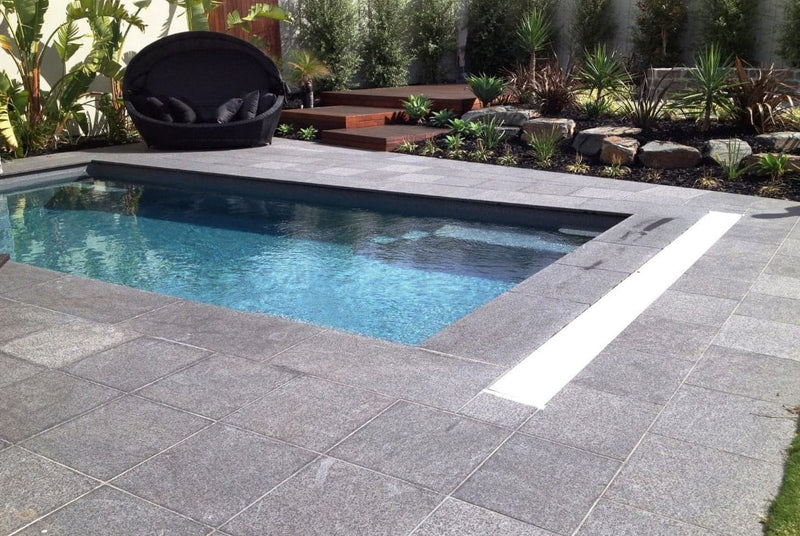

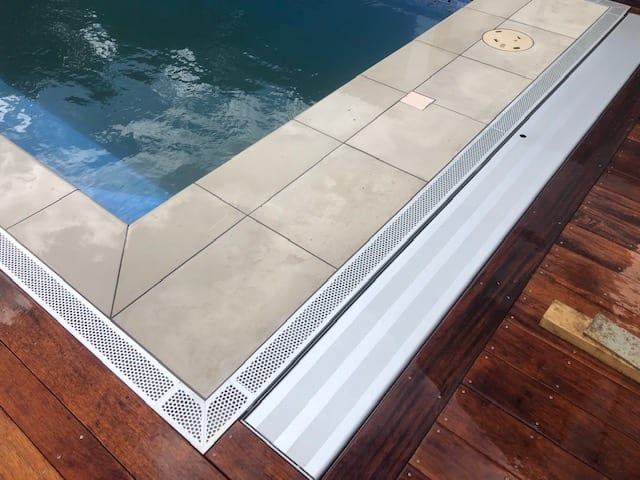

In-ground for tiled, paved or concreted areas with good pit drainage; suspended under timber decking with a flush 270mm lid opening; and suitable for kidney-shaped pools with a cut-to-shape cover. Place the unit as close to the pool as possible with the lid hinging away from the water.
05 — Sizing
What size do I need?
Measure your waterline width. Special lengths from 1m up to 5.5m can be ordered.
3.4m
For waterline widths up to 3.1m
3.9m
For waterline widths up to 3.6m
4.4m
For waterline widths up to 4.1m
4.9m
For waterline widths up to 4.6m
